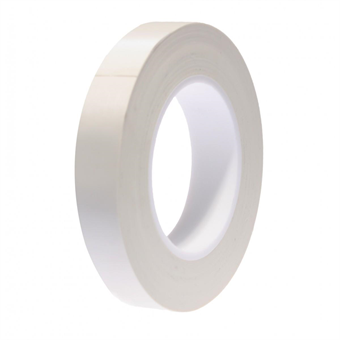

H160 Class B Glass Cloth Tape

Price range: £27.76 through £111.04

  • Thermosetting rubber adhesive system
  • Service temperature: 130°C continuous – Thermal Class B
  • Easy printable carrier
  • UL 510 approval
  • Excellent resistance to acids and oils
  • Sizes Available on-line – See Below
  • Other sizes are available from 3mm to 900mm
    * Please contact our sales office for details *mm

Available Options

ThumbnailSizePriceQuantity
12mm x 50m£27.76
19mm x 50m£42.20
25mm x 50m£55.52
38mm x 50m£84.39
50mm x 50m£111.04

Description

Glass cloth based tape offering superior tear and temperature resistance. Excellent electrical properties for insulation of motors, transformers, coils, etc.
Coated with a thermosetting rubber adhesive with 0.16mm total thickness (130°C thermal class B) approval with U.L. recognition
Applications: Fixing and reinforcing coils and output wires Insulation of primary coils Insulating switches, indicators, motor lead connections Securing, splicing cables and wires harnesses, Outer protective insulating wraps for bobbins, coils, dry transformers etc,

Additional information

Size

12mm x 50m, 19mm x 50m, 25mm x 50m, 38mm x 50m, 50mm x 50m
